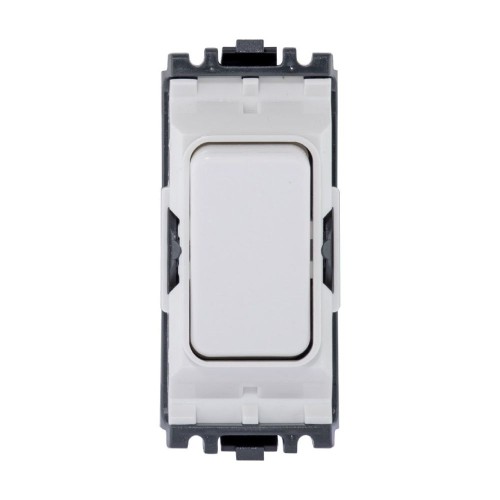

Mk K4896WHI 20A Double Pole 1 Way Grid Module Switch Mk Grid Plus White

• It is the MK K4896WHI Grid Switch 1 Way Double Pole 20A
n• Rating: 20A
n• It is suitable for the MK Grid Plus range
n• The grid modules clip fit to the frame without any requirement for special tools
n• It can be removed or replaced when the grid frame is fixed in position
n• Finish: White, White Insert
n• Body & Switch Trim: White
n• Type: One Module, Double Pole, One Way, 20A, 250V AC
n• Product Class 1: Face plate must be earthed
n• Dimensions: 59mm height, 23mm width, 34mm depth. It requires a 35mm back box.
n• These Switches do not have to be Derated when used with Fluorescent or Inductive Loads
n• Terminal Capacity: 4 x 1mm 4 x 1.5mm 4 x 1mm 2 x 4mm or 1 x 6mm
n• Ambient Operating Temperature: -5° to +40°C
n• Recommended Location: Indoor use only
n• Single grid module switch 1 way double pole
n• MK Code: K4896WHI
