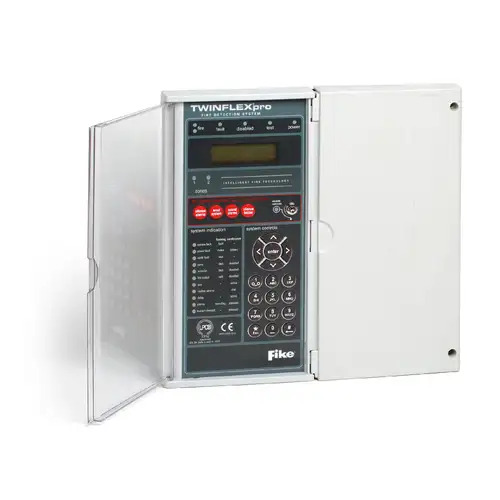

505-0002 Twinflex Pro² 2 Zone Bi-Wire Conventional Fire Alarm Panel

‘
n
n⍟ Two integrated outputs and two volt free relays.
n⍟ Allows detectors and sounders to be installed on the same pair of wires.
n⍟ LED indicators for power, fault, and alarm status.
n⍟ Two-wire installation saves on time and costs.
n⍟ Monitors each zone for detector head removal and device, end of the line, open, and short circuit faults.
n
nThe Fike 505-0002 High-Quality Twinflex Pro2 2-Zone Control Fire Alarm Panel has Two integrated outputs and two volt free relays. It allows detectors and sounders to be installed on the same pair of wires. It has LED indicators for power, fault, and alarm status and Two wire installation saves on time and costs. Monitors each zone for detector head removal and device, end of the line, open, and short circuit faults.
n
nFeatures:
n
n- Highlighted selection menu.
n- Front panel LCD display (4 lines x 20 characters).
n- Differentiates between call point and detector alarms.
n- Event log storing up to 500 events.
n- Up to 32 devices per zone.
n- CE marked, BS EN54-4, BS5839: Part 1: 2002.
n- Number Of Zones: 8, Eight Zone Fire Alarm panel.
n- Max Zone Length: 500 Meters.
n- Zone Loading: 27 SLU (32 Devices Max).
n- Zone Operating Voltage: 29.9V DC Nominal.
n- Standby Battery Requirement: 2 x 3.3Ah 12v Sealed Lead Acid.
n- LCD Display: 4 lines of 20 characters.
n- Zone Labels: 12 characters.
n- Max Zone Current: 250mA.
n- Operating Temperature: +5C to +40C.
n- Mains Supply Range: 230V AC, +10%, -15%, 50/60Hz.
n- Inputs: 1 x resistance monitored input (3k3 EOL, 680R firing resistor), 2 x un-monitored inputs.
n- Fault Output: 1 x volt-free relay (30V DC @ 1A max).
n- Fire Outputs: 1 x volt-free relay (30V DC @ 1A max), 2 x 24V conventional sounder circuits (10K EOL, 315mA max).
