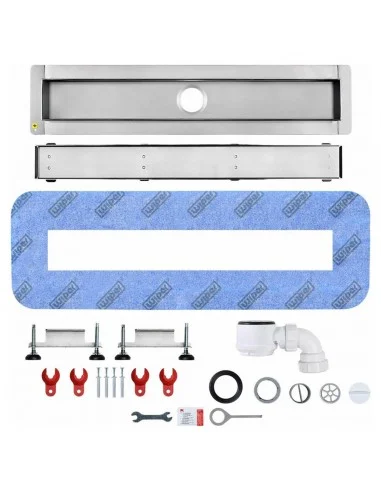

AX60P 600mm Premium Shower Drain (Pure)

• Length (X): 600 [mm]
n• Height of channel (C): 30 [mm]
n• Height to the centre of waste pipe (G): 68 [mm] (can be adjusted)
n• Total height (H): 98 [mm]
n• Width of channel (Y): 84 [mm]
n• Width of insulating flange (F): 140 [mm] (included)
n• Width of sealing membrane (M): 250 [mm] (included)
n• Flange to top edge of channel (T): 15 [mm]
n• Complete siphon, pipe diameter: 1.5″ (British standard size),
n• Pipe height adjustable and rotatable at 360°,
n• Drain’s cover included.
nPure drain cover is an internal container that you can insert the tiles into. This type of drain is 100% tile-able.
n
n• Tile channel depth (A): 12 [mm]
n• Tile channel width (D): 60 mm [mm]
