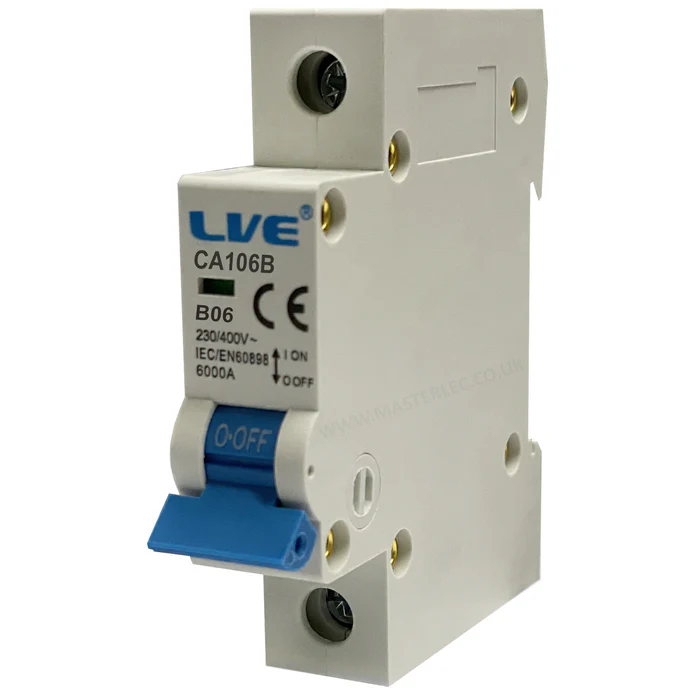

6Amp Single Pole MCB B Curve

• Rated Current In (A): 6, 10, 16, 20m 25, 32, 40, 50, 63
n• Poles: 1P, 2P
n• Rated Voltage Ue (AC): 230/400V.
n• Rated Frequency: 50/60Hz.
n• Insulation Voltage Ui: 500V.
n• Rated Breaking Capacity (A): 6KA.
n• Rated Impulse withstand Voltage (1.2/50) Uimp (V): 4000.
n• Dielectric test voltage at ind. Frq for 1 min (KV): 2.
n• Ambient temperature (with daily average <35°C: -5~+40)
n• Thermo-magnetic release characteristic: B, C, D
n• Electrical Life: 8,000.
n• Contact position degree: IP20
n• Storage temperature (°C): -25~+70)
n• Reference temperature for setting of thermal element (°C): 30
n• Cable terminal capacity maximum: 16mm²
