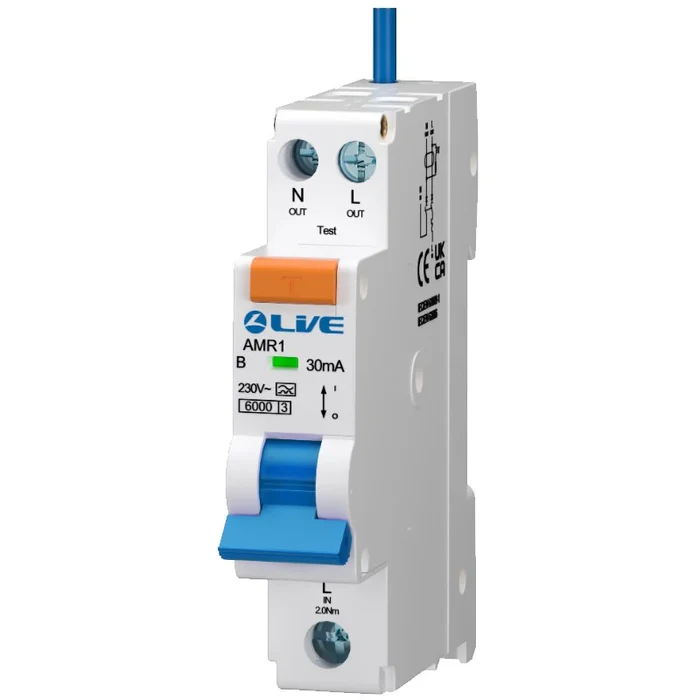

Single Module – Double Pole 10A B Curve 30mA Type A Mini RCBO

• Rated current (In): 10A.
n• Rated voltage (Ue): 230V AC.
n• Breaking capacity (Icn): 6kA.
n• Rated residual current: 30mA.
n• 1P+N.
n• Tripping characteristic: B.
n• Switching and isolation.
n• Overload and short circuit protection.
n• Type A detects and responds to both AC and pulsating DC.
n• Indirect and direct contact protection.
n• Protection against fire hazard caused by insulation faults.
n• Bidirectional.
n• Electrical endurance: 400 cycles.
n• Mechanical endurance: 100000 cycles.
n• Complies with BS EN 61009-1.
n• Type: A.
n• Terminal cable capacity maximum: IN:16mm2, OUT:10mm2.
