Mercury808.030UK Cat6 U/UTP Network Cable Grey 100m
£52.80
Mercury
Hover to zoom · Click for a closer look
Mercury

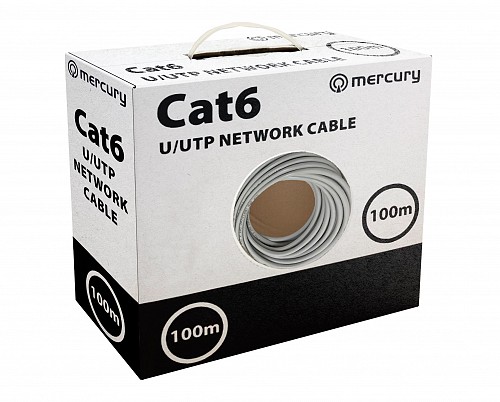

808.030UK Cat6 U/UTP Network Cable Grey 100m
Sold by Electrical Xpress
About this item
- Key feature: Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals
- Specification: This cable is designed for high speed data transmission such as Gigabit Ethernet
At a glance
- Brand
- Mercury
- Model / SKU
- 5015972201947-808.030UK
- Department
- Cable & Cable Management
5015972201947-808.030UK
About this item
- Product: 808.030UK Cat6 U/UTP Network Cable Grey 100m
- Key feature: Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and mar
- Confirm size, rating and compatibility before purchase or installation.
Technical details
| Manufacturer | AVSL Group Ltd |
|---|---|
| Country of origin | |
| Item model number | 808.030UK |
| Product dimensions | Length: 100±0.5m |
| Product weight | 4.3 kg (Selected manufacturer stock-code specification weight) |
| ASIN | |
| SKU | 5015972201947-808.030UK |
Manufacturer specifications
| Manufacturer stock code | 808.030UK |
|---|---|
| Manufacturer product name | Cat6 U/UTP Network Cable |
| Selected variant | Grey 100m |
| Weight | 4.3kg |
| Length | 100±0.5m |
| Cable colour | Grey |
| Conductor | Solid OFC |
| Strands | 8 x 1/0.54mmØ ±2% |
| Conductor CSA | 8 x 0.229mm² |
| Cable : diameter | 5.8mmØ |
| Insulation | HDPE 0.195mm thickness |
| Sheath | PVC 0.55mm thickness |
| Capacitance | 5.2nF/100m |
| DC resistance @ 20°C | <9.5 ohms/100m |
| Impedance (100 to 250MHz) | 100±15 ohms |
| Return loss | >17.3dB @100m |
| Attenuation | <32.8dB @100m |
| NEXT | >38.3dB |
| PSNEXT | >36.3dB |
| ELFEXT | >19.8dB |
| PSELFEXT | >16.8dB |
| Phase delay | <570ns |
| Manufacturer barcode reference | 5015972201947 |
Product reference: Manufacturer information
Company details: Official manufacturer / brand contact
Your questions, answered
Is 808.030UK Cat6 U/UTP Network Cable Grey 100m available to order?
This product is currently listed in stock. Availability is checked again when you add it to your basket.
How do I identify the correct product?
Quote SKU 5015972201947-808.030UK when contacting us. Check the product title, photographs and model information against the item you need. Similar-looking products can have different specifications.
Which specifications should I check?
Use the Description and Technical details tabs to compare the available specifications. Ask us to confirm any rating or compatibility detail that is not supplied.
What size and weight is this item?
Listed dimensions: Length: 100±0.5m. Listed weight: 4.3 kg (Selected manufacturer stock-code specification weight). Allow for the mounting, access or working space required by your application.
Is the price inclusive of VAT?
The displayed UK price includes VAT where applicable. Your basket and checkout show the tax and order totals before you pay.
Can I check delivery to my postcode?
Use the delivery checker above with your UK postcode and chosen quantity. Free-delivery eligibility depends on the eligible order value and the current delivery settings.
What is included with this product?
The description and product specifications list the supplied components where available. Product photographs may show an application or accessories; contact us if an included component is not explicitly listed.
Can I get help before buying?
Contact Electrical Xpress on 020 8679 5522 and quote the SKU or product title. For electrical, gas or plumbing work, check the manufacturer’s instructions and use a suitably qualified installer where required.
Additional information
| Manufacturer address | Unit 2 Bridgewater Park, Taylor Road, Trafford Park, Manchester, M41 7JQ, United Kingdom |
|---|---|
| Packer address | |
| Importer address | |
| Marketing company address | |
| Item weight | 4.3 kg (Selected manufacturer stock-code specification weight) |
| Item dimensions | Length: 100±0.5m |
| Net quantity | |
| Included components | |
| Generic name | Network cable |
