When to Use Gel Filled Connector Boxes: Moisture Protection Without Guesswork

Does a gel filled box make any cable joint suitable for a wet location?

Updated 30 October 2026 · Electrical Xpress buying guides

Gel filled connector products can protect approved electrical connections against moisture under their specified conditions. They are useful components of a designed installation, but they are not a universal way to waterproof any joint. The connector, cable, enclosure and location all need to be considered together.

What does the gel do?

In an approved system, gel surrounds the intended connection area to provide its specified protection. That does not automatically provide cable restraint, impact protection or a suitable enclosure for every voltage. A connector that fits inside a box is not necessarily an approved combination.

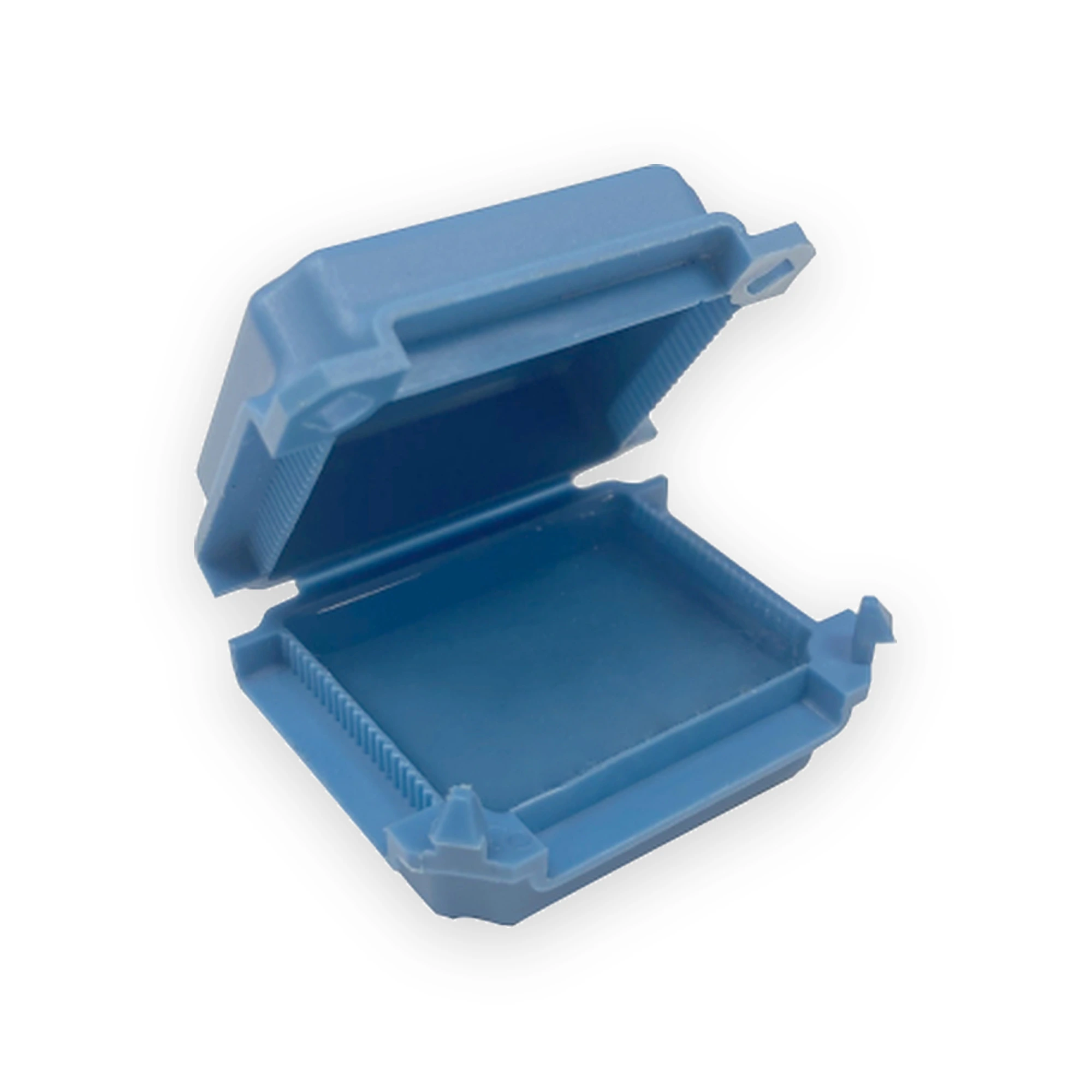

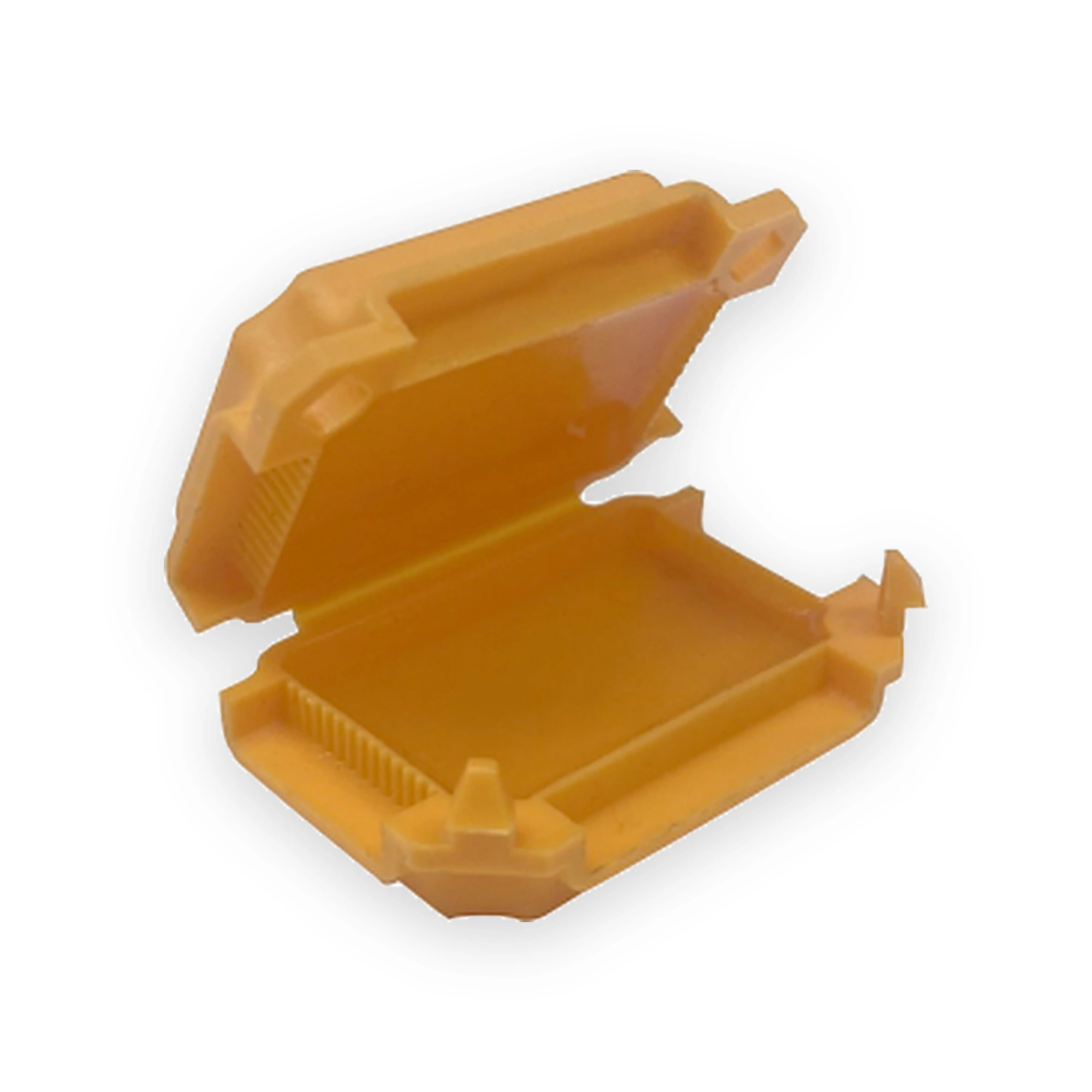

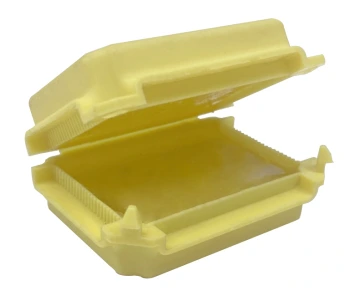

Compare the small WAGO gel filled box, larger WAGO option and 53 × 39 × 24mm WAGO box. Their dimensions help identify products, but the maker's compatibility information determines the permitted connector types, conductor ranges and number of connections. Do not squeeze extra connectors into the gel because the lid can be forced shut.

Is an outer junction box still needed?

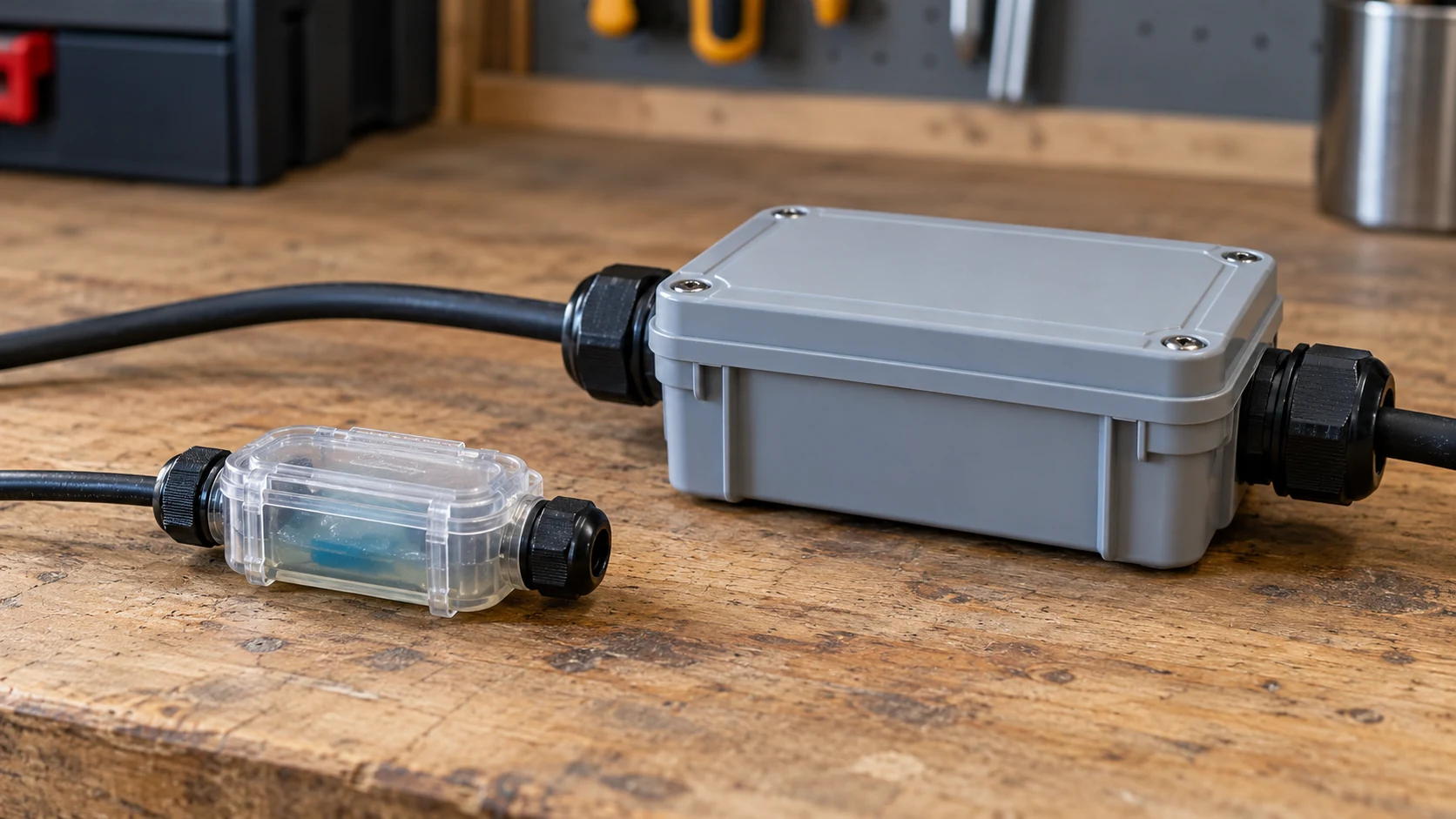

For WAGO Gelbox applications above 50V, WAGO specifies use within a suitable outer junction box. This is especially important when planning ordinary mains connections. The gel box should not be interpreted as permission to leave a 230V joint loose in a garden, ceiling or accessible space.

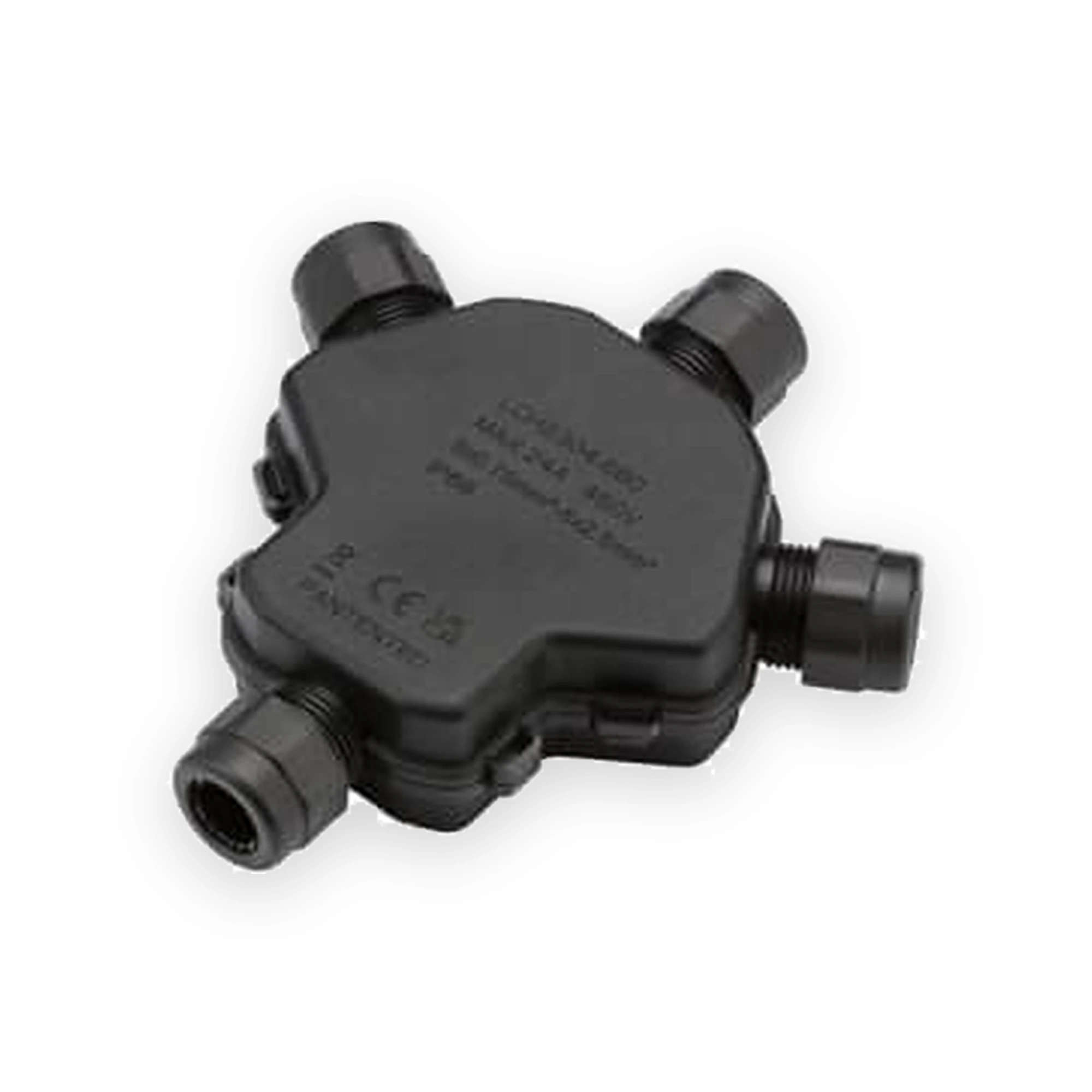

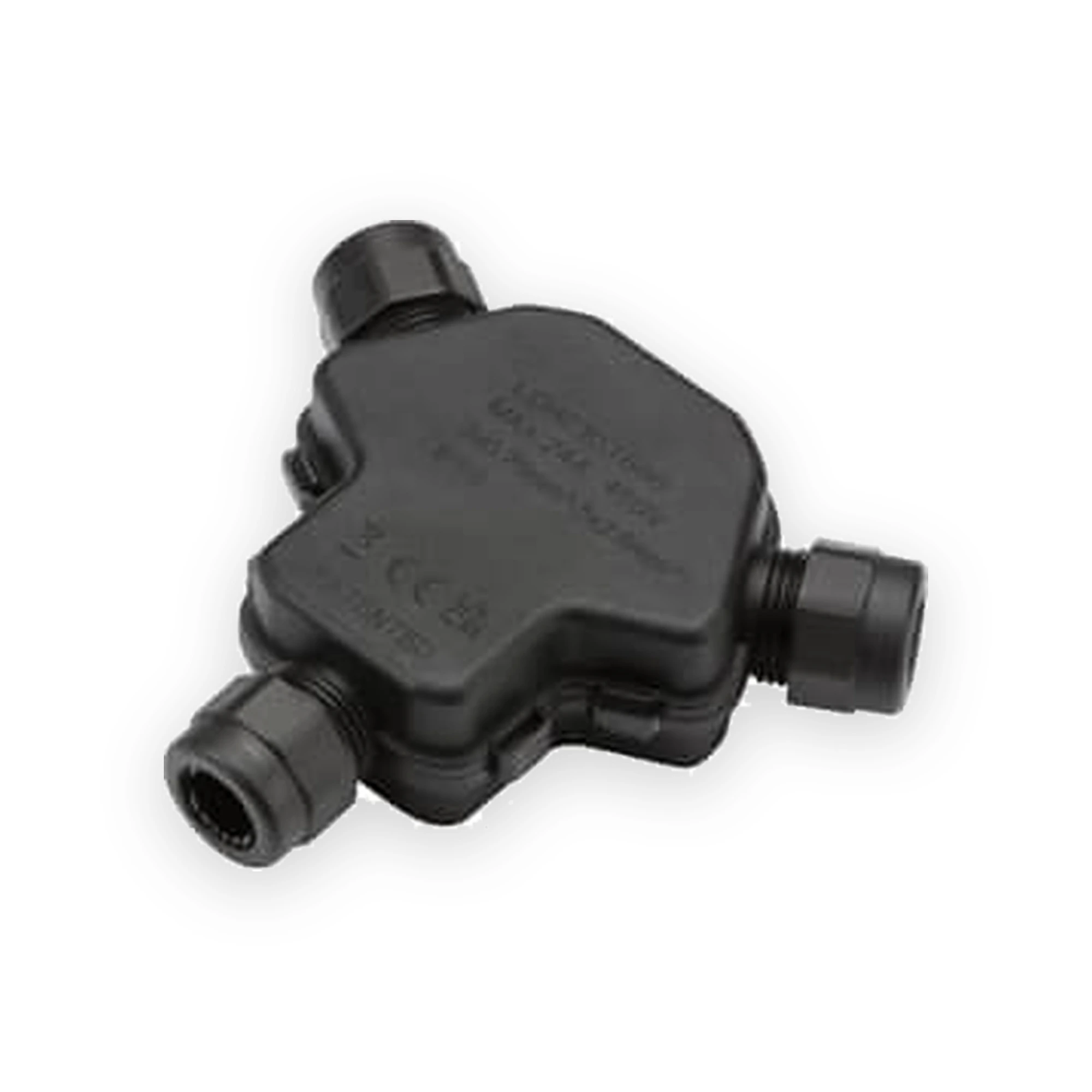

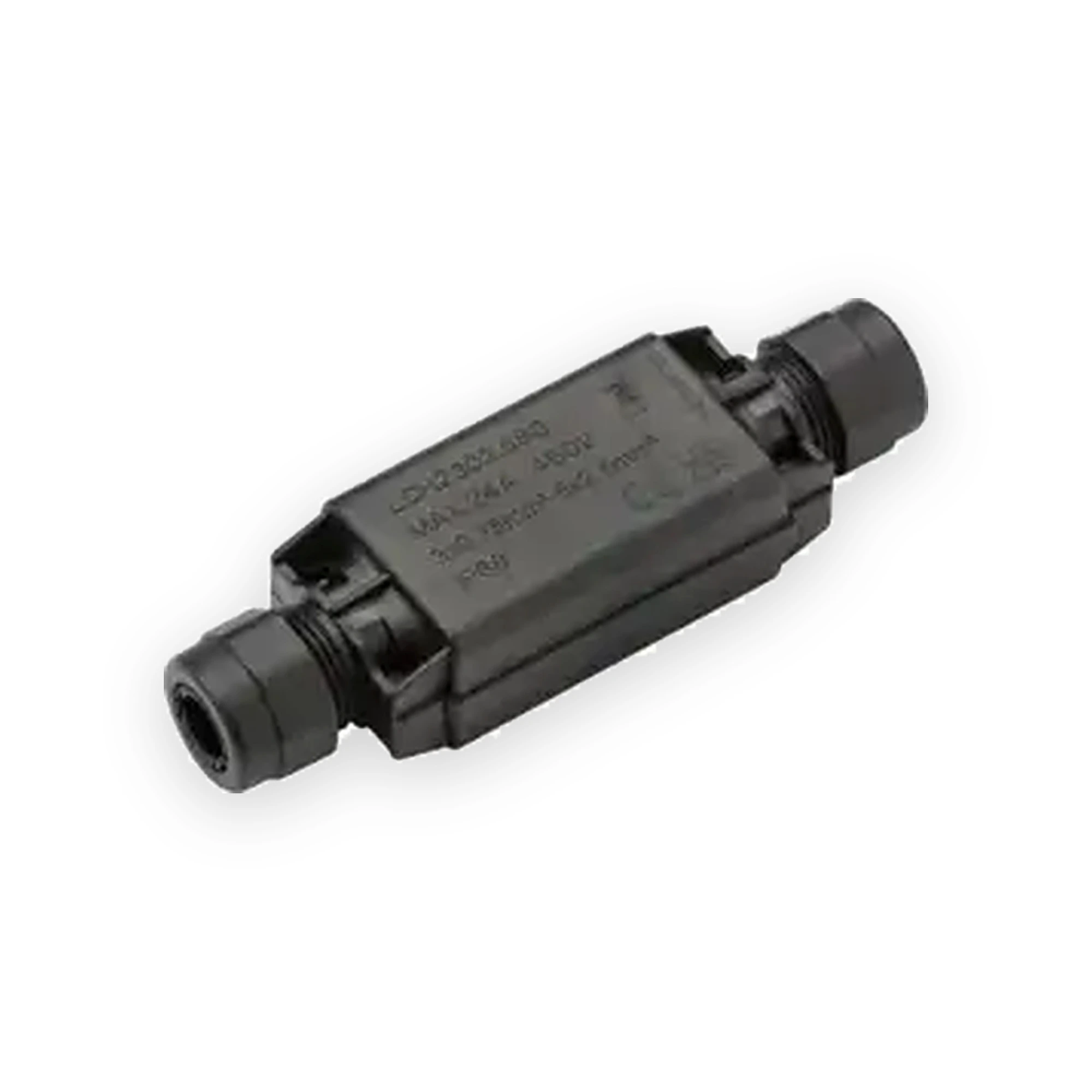

Other products have their own complete enclosure arrangements. The inline weatherproof gel box, three way gel junction box and four way version are separate designs. Check their current rating, voltage, cable entry range, sealing arrangement and permitted locations in the exact instructions. Do not transfer WAGO system claims to a different product.

What must be checked outdoors?

An electrician should assess exposure, mechanical protection, cable support, access, circuit protection and the possibility of standing water. An ingress rating does not automatically mean a joint is approved for direct burial, permanent immersion or every pressure and temperature. Those uses need explicit manufacturer approval and an appropriate installation design.

Plan cable entries so the enclosure can perform as intended. Incorrect cable diameters, damaged seals, dirt or strain at the entry can undermine the assembly. The complete installation must remain suitable, including cables and equipment beyond the protected joint.

How should inspection and replacement be handled?

Retain the exact product references and the installation information. If the joint is suspected of water ingress, damage or overheating, arrange safe professional assessment. Do not open a mains connection merely because the surrounding gel looks harmless. Safe isolation and verification still apply.

Reopening and reuse depend on the specific system and its condition. Follow the manufacturer's instructions about replacement, contamination and approved connectors rather than adding unapproved gel or sealant. For a reliable purchase, ask your installer to specify the full assembly: connector model, gel box, outer enclosure where required and cable sizes. That is more useful than choosing a box by colour or a generic “waterproof” description.

Compare the key choices

Explore the product examples

Compare the specifications and current availability of these catalogue items. They illustrate different choices in this guide and are not a list of mutually compatible components.

Wago Gel Filled Connector Box 41 X 28 X19mm- OrangeWago Gel Filled Connector Box 45 X 37 X 24mm- BlueWago Gel Filled Connector Box 53 X 39 X 24mm- Blue24A Inline Weatherproof Gel Box3-Way Weatherproof Gel Junction Box4-way Weatherproof Gel Junction Box

Watch the educational video

Video by WAGO UK & Ireland . The YouTube player loads when you choose play. Watch on YouTube.
