RCBO and Surge Protection Explained: Different Jobs in a Modern Consumer Unit
Why might a modern electrical installation need both RCBOs and surge protection?
Updated 30 October 2026 · Electrical Xpress buying guides
A modern consumer unit can contain several protective devices that look similar but respond to different problems. RCBOs and surge protective devices are an important example. Understanding their separate roles helps you discuss an installation with an electrician without assuming one device replaces every other form of protection.
What does an RCBO do?
An RCBO combines residual current protection with overcurrent protection for its specified application. Selection includes current rating, residual current characteristics, breaking capacity and suitability for the circuit and equipment. It is not enough to match the number printed on an old breaker.

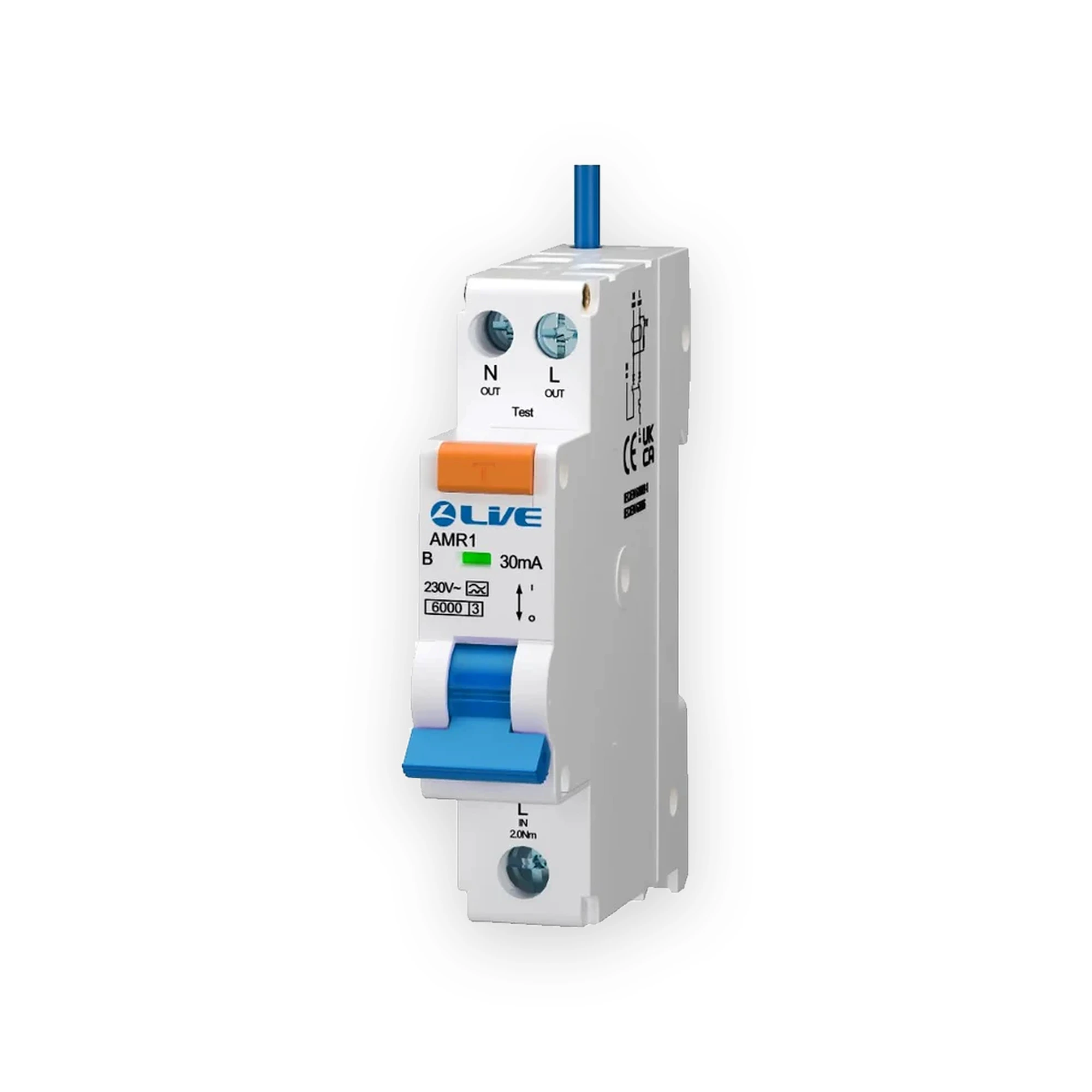

The Live Electrical 6A Type A RCBO, 32A version and 40A version demonstrate different ratings within a product family. These are product examples, not a rule assigning a particular rating to a room or appliance. The circuit design and manufacturer's approved consumer unit combinations determine the choice.
What does surge protection do?
A surge protective device, often shortened to SPD, addresses transient overvoltages. It serves a different function from residual current and overload protection. An SPD is not a general voltage regulator, a guarantee against every lightning event or a substitute for an RCBO, earthing or good installation practice.
The FuseBox SPD and MCB kit and Navitas hybrid SPD kit belong to different systems. Similar module widths do not establish that they can be mixed in any enclosure. The electrician must check the approved assembly, connection arrangement and the type of protection needed.
Why are devices coordinated as a system?
The consumer unit, busbars, protective devices and accessories form an assembly with manufacturer requirements. Substituting a visually similar device from another brand can affect that assessment. Space alone does not make a new protective device a safe addition to an existing board.

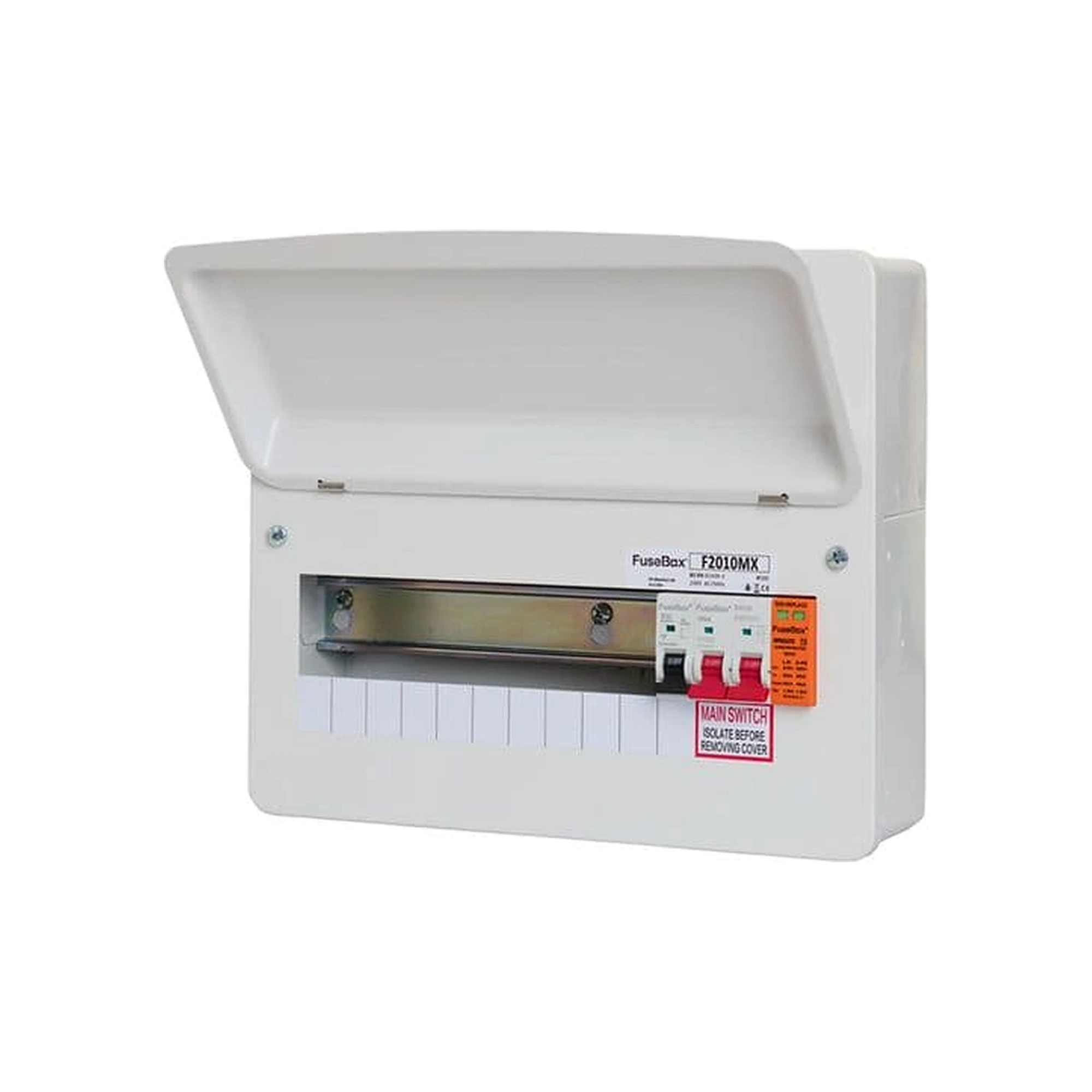

A FuseBox consumer unit with surge protection is an example of a system to investigate where replacement is being assessed. It is not a ready made answer for every property. Existing circuits, incoming supply, earthing, connected equipment and the scope of work all need review against current requirements.
What should the homeowner ask?
Explain any recurring trips, recent changes, sensitive equipment and planned additions such as heating or charging loads. Ask the electrician what each proposed device protects against, which components are approved together and what testing and documentation will be provided. Do not remove the consumer unit cover to identify parts yourself.
What maintenance is useful after installation?
Keep the circuit schedule legible and follow the supplied RCD or RCBO test instructions and labels. Check any externally visible SPD status indication as the manufacturer directs; colours and replacement arrangements are product specific. A warning indication needs professional assessment, not a household cartridge swap inside a live board.
Repeated tripping, heat marks, unusual noise or a burning smell should be investigated. Avoid repeatedly resetting a device without understanding the cause. Protection works best as a coordinated installation with clear records and appropriate ongoing checks, rather than as a collection of impressive sounding component names.
Compare the key choices
| Device or function | Main concern | Does not replace |
|---|---|---|
| Residual current protection | Specified earth leakage conditions | Overload and short circuit design |
| Overcurrent protection | Overload and short circuit conditions | Residual current protection where required |
| RCBO | Combined specified functions | All other protective measures |
| SPD | Transient overvoltage | RCBOs, earthing or suitable circuit design |
Explore the product examples
Compare the specifications and current availability of these catalogue items. They illustrate different choices in this guide and are not a list of mutually compatible components.
Live Electrical Single Module – Double Pole 6A B Curve 30mA Type A Mini RCBO
Live Electrical Single Module – Double Pole 32A B Curve 30mA Type A Mini RCBO
Live Electrical Single Module – Double Pole 40A B Curve 30mA Type A Mini RCBO
FuseBox SPDCUT2 SPD With 32A MCB Kit
Navitas Hybrid SPD Kit
FuseBox F2010MX 10 Way RCBO Consumer Unit + Surge ProtectionWatch the educational video
Video by Hager. The YouTube player loads when you choose play. Watch on YouTube.
Hager explains surge protective devices. The video is an introduction to that function, not a consumer unit installation procedure or a statement that its products fit another brand’s assembly.
Frequently asked questions
Does an SPD prevent electric shock?
It addresses transient overvoltage. It is not a substitute for the measures intended to protect people from electric shock.
Can any same size RCBO be fitted in my consumer unit?
No. Use the combinations approved for the assembly, selected and installed by a competent electrician.
